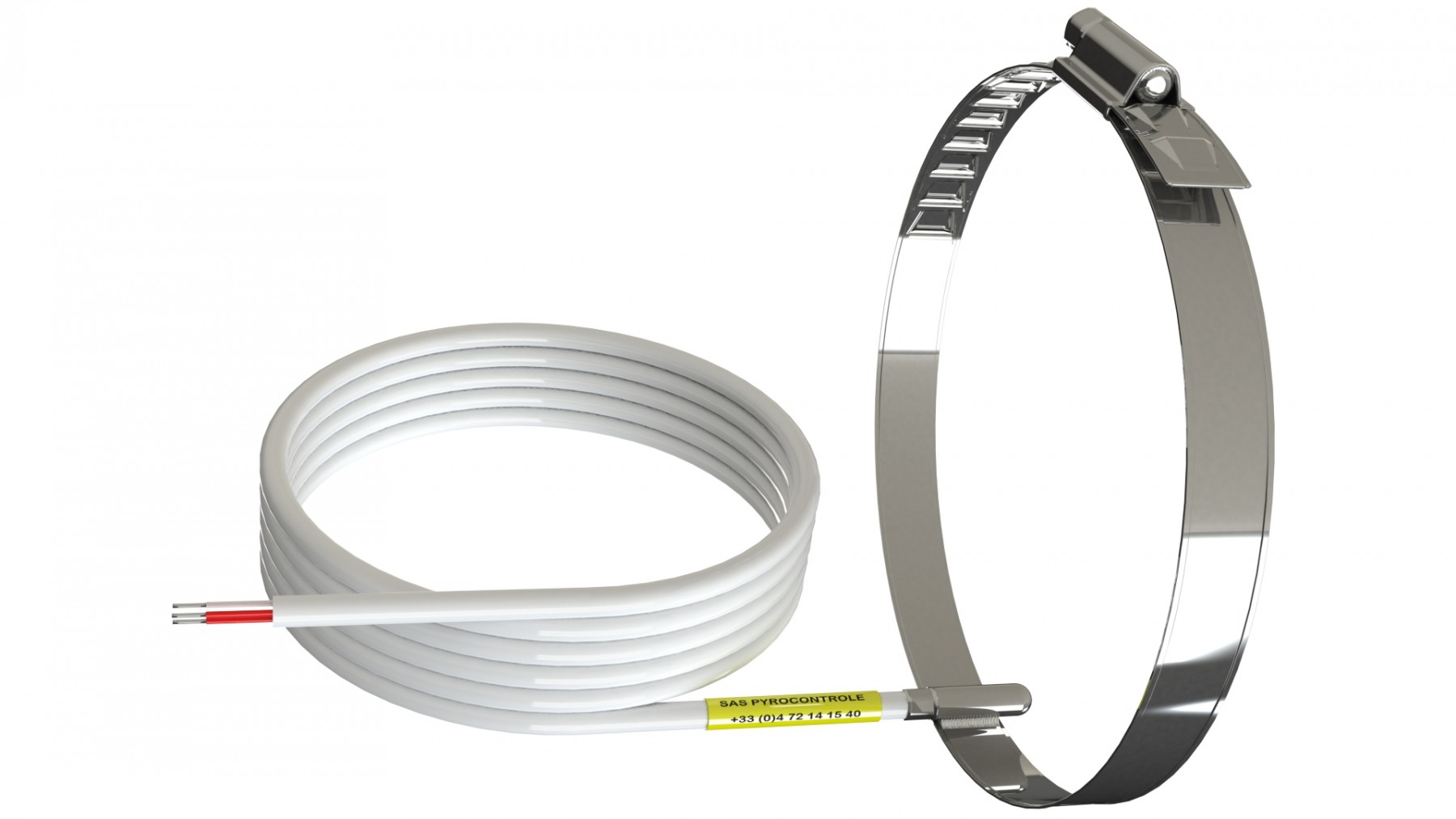

RTD SENSOR MOUNTED ON TUBE WITH SERFLEX BAND

Technical datasheet
References

Highlights

Class A
IEC 60751
DURAL plate
250°C max

Description

SS6 Pt100
Pt100 sensor, Class A, 3 wires, as per IEC 60751, in stainlesssteel 316L sheath, output via PFA cable 2 metres long, for temperature measurement up to 250°C. Fastening on pipe with Serflex clip (supplied).

Type :
Pt100

Material :
Stainless-steel 316L tube, diam.3.2 x 25 mm

Mounting :
Fixed, by stainless-steel Serflex clip

Length L Min / Max :
2,000 mm

Output :
Sheath PTFE, Insulated bare wires

Clip diameter :
8 standard diameters from 10 mm to 95 mm

Other dimensions please contact us

References

Designation

Price

Reference

Quantity

Actions

SONDE A COLLIER 10-15

L918515-001

Quotation

SONDE A COLLIER 16-22

L918515-002

Quotation

SONDE A COLLIER 20-26

L918515-003

Quotation

SONDE A COLLIER 26-34

L918515-004

Quotation

SONDE A COLLIER 34-50

L918515-005

Quotation

SONDE A COLLIER 49-65

L918515-006

Quotation

SONDE A COLLIER 64-80

L918515-007

Quotation

SONDE A COLLIER 79-95

L918515-008

Quotation
