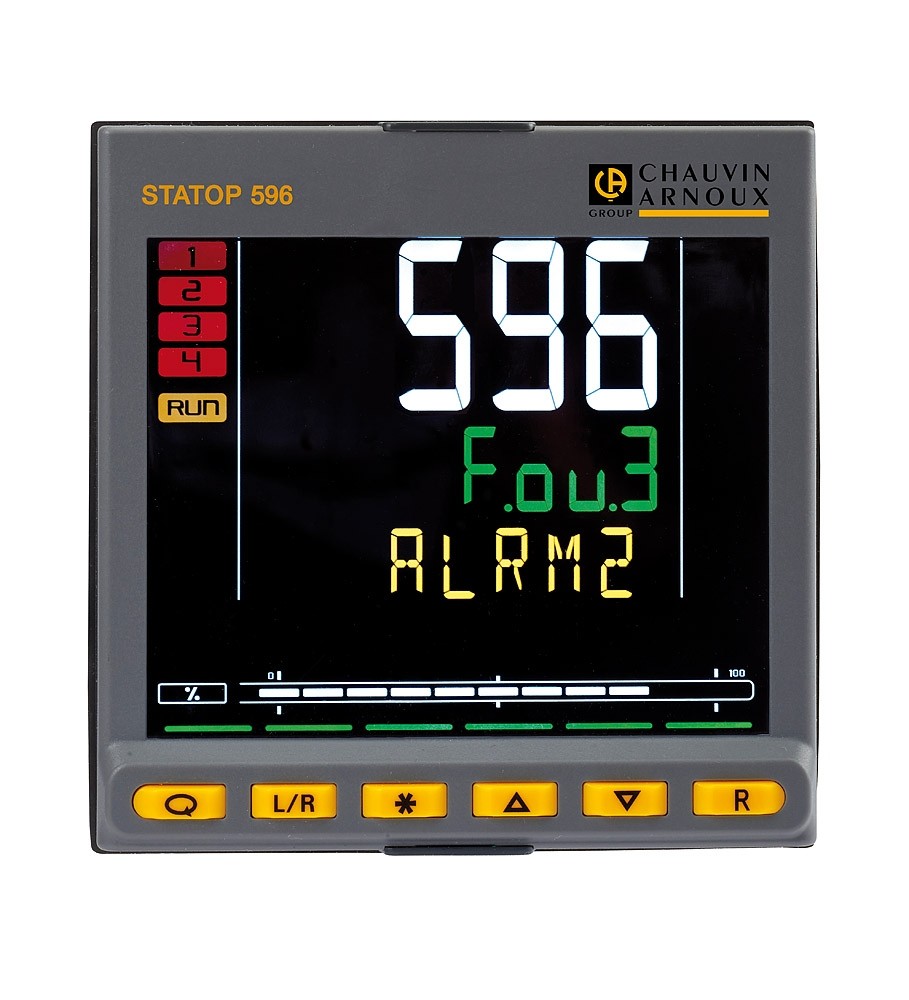

STATOP 596 PID CONTROLLER 1/4 DIN (96X96)

Highlights

STATOP 596 PID Controller
Format: 96x96 (1/4 DIN)
3 displays (measurement/setpoint/output power and alphanumeric message)
1 Bargraph
IP 65
Simple configuration, intuitive use
Advanced, customizable functions
Smart display (alphanumeric messages)
Preventive maintenance
Function Energy counter (with C.T.)
Single-loop PID

Description

STATOP 596 PID Controller
Format: 96x96 (1/4 DIN)
 4 displays (measurement/setpoint/output power and alphanumeric message)
1 Bargraph
IP 65
Simple configuration, intuitive use
Advanced, customizable functions
Smart display (alphanumeric messages)
Preventive maintenance
Function Energy counter (with C.T.)
Single-loop PID

Universal measurement input (TC, RTD, IR, analogue)
External setpoint input (option)
Sampling interval: 60ms/120ms selectable
Current transformer (C.T.)

Inputs:
max. 2 (option) Up to 5 logic inputs Outputs: Control outputs: Relays (max. 4) / Logic (max. 2) / 3-phase AC (max. 1) / DC (max. 1);

Outputs:
Depend on the configuration
Alarms: up to 4 linked to an output
Analogue retransmission (option)

Functions:
Control: PID, On/Off, Hot/Cold
Command outputs for power-operated valves (interlocked outputs)
Setpoint programmer: number of programs 4, number of steps 12 (1 step = ramp+plateau)
Multiple setpoints: 4
Logical function blocks (option): 16 Timer
Diagnostics: control-loop break alarm
RS485 MODBUS communication (option)
Power supply: 100…240VAC/DC 50/60Hz (option: 20…27V AC/DC)
Consumption: 10 W
Operating temperature: -10…+55°C
Dimensions: 96x96x80
Compliant with the CE/UL directives

Designation
Price
Reference
Quantity
Actions
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-001
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-002
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-003
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-004
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-005
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-006
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-007
-
regul.PID ST 596 (96x96) PID control. ST596 (1/4)
-
LST596C-008
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-009
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-010
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-011
-
regul.PID ST 596 (96x96) PID control. ST596 (1/4)
-
LST596C-012
-
regul.PID ST 596 (96x96) PID control. ST596 (1/4)
-
LST596C-013
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-014
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-015
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-016
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-017
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-018
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-019
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-024
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-100
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-101
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-102
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-103
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-104
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-105
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-106
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-107
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-108
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-109
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-110
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-111
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-112
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-113
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-114
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-115
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-116
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-117
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-118
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596C-123
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596P-022
-
regul.PID ST 596 (96x96) PID control. ST596 (1/4)
-
LST596P-023
-
regul.PID ST 596 (96x96) PID control. ST596 (1/4)
-
LST596P-025
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596P-121
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596P-122
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596V-020
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596V-021
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596V-119
-
regul.PID ST 596 (96x96) PID control.ST596 (1/4)
-
LST596V-120
-
