STATOP 689 PID CONTROLLER1/8 DIN (48X96)

Highlights

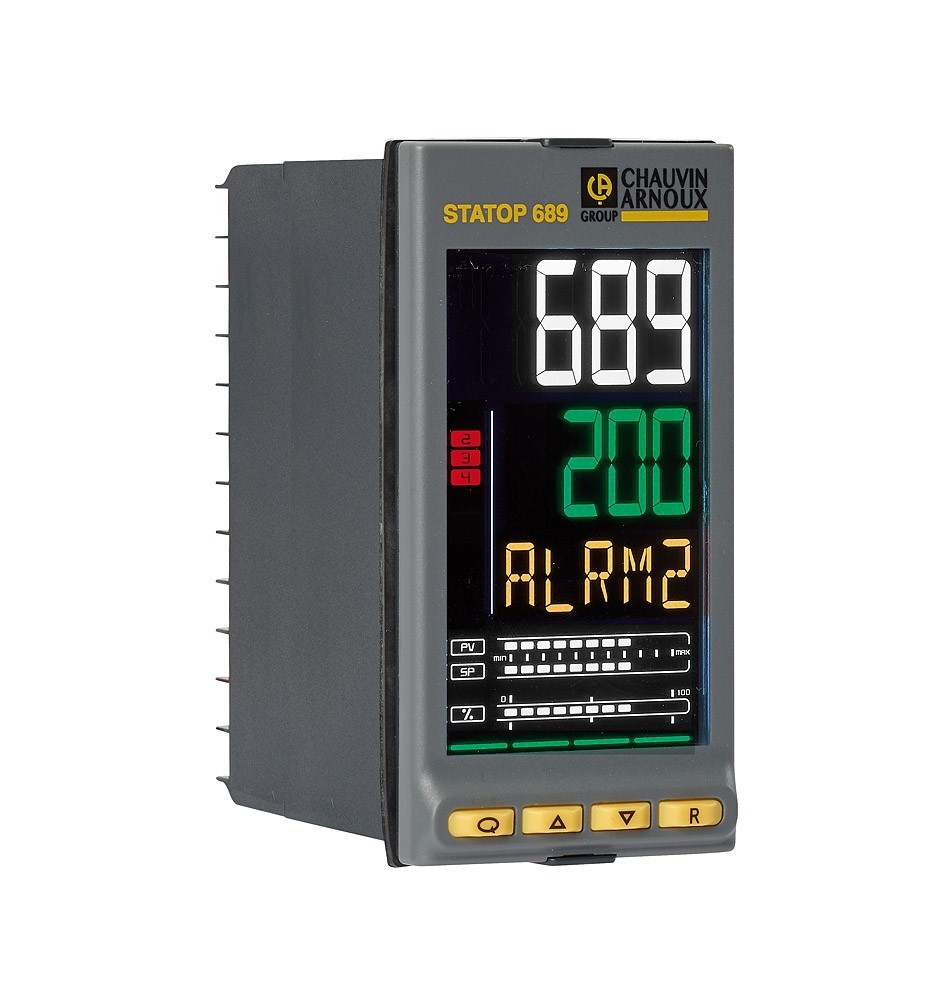

STATOP 689 Dual-Loop PID Controller
1/8 DIN (48X96)
3 displays
3 Bargraphs
IP 65
Simple configuration, intuitive use
Advanced, customizable functions
Description
STATOP 689 dual-loop PID controller
Format 48x96 (1/8 DIN)
Up to 15 I/Os

3 displays (measurement/setpoint/output power and/or alphanumeric message)
3 bargraphs (measurement/setpoint/output power)
IP 65
Simple configuration and intuitive use
Advanced, customizable functions
Smart display (alphanumeric messages)
Preventive Maintenance function
Energy counter function (with CT option)
Two independent PID controllers

Inputs:
Universal measurement input (TC, RTD, IR, analogue)
Auxiliary input* Sampling time: 60ms/120ms, selectable
Current transformer (CT) input: 2 max.*
Up to 5 logic inputs

Outputs:
Control outputs: Relay (4 max.) / Logic (4 max.) / 3-phase AC (1 max.) / DC (1 max.)*
Alarms: up to 4 assigned to a relay output
Analogue retransmission x2*

Functions:
Control: PID, On/Off, Heat/Cold, Cascade, Ratio
Command outputs for power-operated valves (interlocked outputs) with or without feedback*
Setpoint programmer: number of programs 16, number of steps 128 (1 step = ramp+plateau)
Multiple setpoints: 4
Logical function blocks*
Mathematical blocks*
5 on-board recipes
Transmitter power supply 24Vdc*
Potentiometer power supply 1Vdc*
Timer Diagnostics: control-loop break alarm
RS485 MODBUS* communication
Power supply: 100…240Vac/dc 50/60Hz (20…27Vac/dc available as an option)
Consumption: 10Wmax
Operating temperature: -10…+55°C
Dimensions: 48x96x80mm

Compliant with the CE/UL directives

* Depending on configuration
Designation
Price
Reference
Quantity
Actions
REGUL.PID ST 689 (48x96)
-
LST689C-001
-
REGUL.PID ST 689 (48x96)
-
LST689C-002
-
REGUL.PID ST 689 (48x96)
-
LST689C-003
-
REGUL.PID ST 689 (48x96)
-
LST689C-004
-
REGUL.PID ST 689 (48x96)
-
LST689C-005
-
REGUL.PID ST 689 (48x96)
-
LST689C-006
-
REGUL.PID ST 689 (48x96)
-
LST689C-007
-
REGUL.PID ST 689 (48x96)
-
LST689C-008
-
REGUL.PID ST 689 (48x96)
-
LST689C-009
-
REGUL.PID ST 689 (48x96)
-
LST689C-018
-
REGUL.PID ST 689 (48x96)
-
LST689C-019
-
REGUL.PID ST 689 (48x96)
-
LST689C-023
-
REGUL.PID ST 689 (48x96)
-
LST689C-024
-
REGUL.PID ST 689 (48x96)
-
LST689C-025
-
REGUL.PID ST 689 (48x96)
-
LST689C-029
-
REGUL.PID ST 689 (48x96)
-
LST689C-030
-
REGUL.PID ST 689 (48x96)
-
LST689C-031
-
REGUL.PID ST 689 (48x96)
-
LST689C-032
-
REGUL.PID ST 689 (48x96)
-
LST689C-039
-
REGUL.PID ST 689 (48x96)
-
LST689C-040
-
REGUL.PID ST 689 (48x96)
-
LST689C-041
-
REGUL.PID ST 689 (48x96)
-
LST689C-042
-
REGUL.PID ST 689 (48x96)
-
LST689C-043
-
REGUL.PID ST 689 (48x96)
-
LST689C-044
-
REGUL.PID ST 689 (48x96)
-
LST689C-045
-
REGUL.PID ST 689 (48x96)
-
LST689C-046
-
ST689C-DRVR-000050000000
-
LST689C-100
-
REGUL.PID ST 689 (48x96)
-
LST689C-101
-
REGUL.PID ST 689 (48x96)
-
LST689C-102
-
REGUL.PID ST 689 (48x96)
-
LST689C-103
-
REGUL.PID ST 689 (48x96)
-
LST689C-104
-
REGUL.PID ST 689 (48x96)
-
LST689C-105
-
REGUL.PID ST 689 (48x96)
-
LST689C-106
-
REGUL.PID ST 689 (48x96)
-
LST689C-107
-
REGUL.PID ST 689 (48x96)
-
LST689C-108
-
REGUL.PID ST 689 (48x96)
-
LST689C-117
-
REGUL.PID ST 689 (48x96)
-
LST689C-118
-
REGUL.PID ST 689 (48x96)
-
LST689C-122
-
REGUL.PID ST 689 (48x96)
-
LST689C-123
-
REGUL.PID ST 689 (48x96)
-
LST689C-124
-
REGUL.PID ST 689 (48x96)
-
LST689C-128
-
REGUL.PID ST 689 (48x96)
-
LST689C-129
-
REGUL.PID ST 689 (48x96)
-
LST689C-130
-
REGUL.PID ST 689 (48x96)
-
LST689C-131
-
REGUL.PID ST 689 (48x96)
-
LST689C-138
-
REGUL.PID ST 689 (48x96)
-
LST689C-139
-
REGUL.PID ST 689 (48x96)
-
LST689C-140
-
REGUL.PID ST 689 (48x96)
-
LST689C-141
-
REGUL.PID ST 689 (48x96)
-
LST689C-142
-
REGUL.PID ST 689 (48x96)
-
LST689C-143
-
REGUL.PID ST 689 (48x96)
-
LST689C-144
-
REGUL.PID ST 689 (48x96)
-
LST689C-145
-
REGUL.PID ST 689 (48x96)
-
LST689P-011
-
REGUL.PID ST 689 (48x96)
-
LST689P-012
-
REGUL.PID ST 689 (48x96)
-
LST689P-013
-
REGUL.PID ST 689 (48x96)
-
LST689P-014
-
REGUL.PID ST 689 (48x96)
-
LST689P-015
-
REGUL.PID ST 689 (48x96)
-
LST689P-016
-
REGUL.PID ST 689 (48x96)
-
LST689P-017
-
REGUL.PID ST 689 (48x96)
-
LST689P-026
-
REGUL.PID ST 689 (48x96)
-
LST689P-027
-
REGUL.PID ST 689 (48x96)
-
LST689P-028
-
REGUL.PID ST 689 (48x96)
-
LST689P-038
-
REGUL.PID ST 689 (48x96)
-
LST689P-047
-
REGUL.PID ST 689 (48x96)
-
LST689P-048
-
REGUL.PID ST 689 (48x96)
-
LST689P-110
-
REGUL.PID ST 689 (48x96)
-
LST689P-111
-
REGUL.PID ST 689 (48x96)
-
LST689P-112
-
REGUL.PID ST 689 (48x96)
-
LST689P-113
-
REGUL.PID ST 689 (48x96)
-
LST689P-114
-
REGUL.PID ST 689 (48x96)
-
LST689P-115
-
REGUL.PID ST 689 (48x96)
-
LST689P-116
-
REGUL.PID ST 689 (48x96)
-
LST689P-125
-
REGUL.PID ST 689 (48x96)
-
LST689P-126
-
REGUL.PID ST 689 (48x96)
-
LST689P-127
-
REGUL.PID ST 689 (48x96)
-
LST689P-137
-
REGUL.PID ST 689 (48x96)
-
LST689P-146
-
REGUL.PID ST 689 (48x96)
-
LST689P-147
-
REGUL.PID ST 689 (48x96)
-
LST689V-010
-
REGUL.PID ST 689 (48x96)
-
LST689V-020
-
REGUL.PID ST 689 (48x96)
-
LST689V-021
-
REGUL.PID ST 689 (48x96)
-
LST689V-022
-
REGUL.PID ST 689 (48x96)
-
LST689V-033
-
REGUL.PID ST 689 (48x96)
-
LST689V-034
-
REGUL.PID ST 689 (48x96)
-
LST689V-035
-
REGUL.PID ST 689 (48x96)
-
LST689V-036
-
REGUL.PID ST 689 (48x96)
-
LST689V-037
-
REGUL.PID ST 689 (48x96)
-
LST689V-109
-
REGUL.PID ST 689 (48x96)
-
LST689V-119
-
REGUL.PID ST 689 (48x96)
-
LST689V-120
-
REGUL.PID ST 689 (48x96)
-
LST689V-121
-
REGUL.PID ST 689 (48x96)
-
LST689V-132
-
REGUL.PID ST 689 (48x96)
-
LST689V-133
-
REGUL.PID ST 689 (48x96)
-
LST689V-134
-
REGUL.PID ST 689 (48x96)
-
LST689V-135
-
REGUL.PID ST 689 (48x96)
-
LST689V-136
-
